Product Details

Parking guidance is used in urban, scenic or underground large parking lot parking management and parking lot management.


● Customized product

● Icloud data

● Own parking control card

● Own parking maintance system

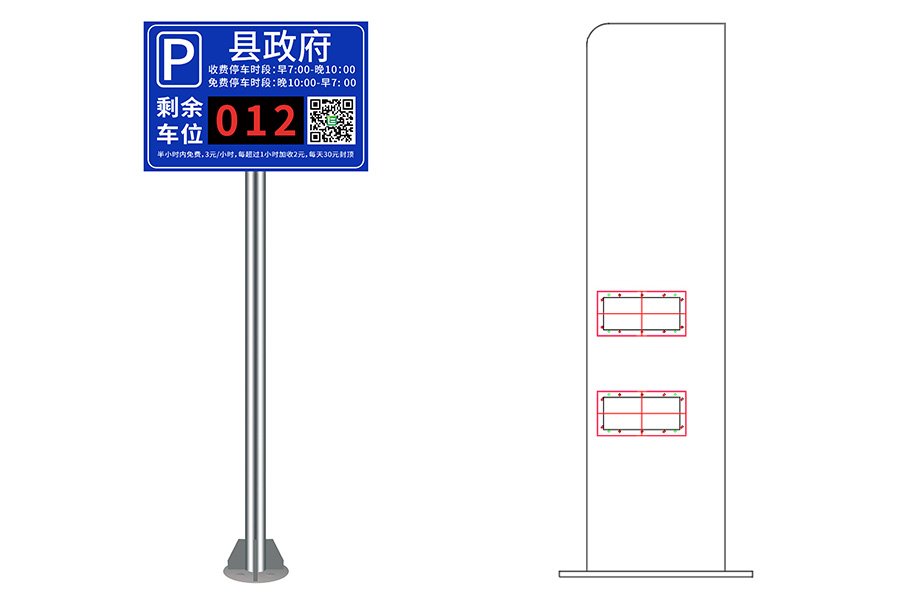

Parking Guidance Sign
ModelYDBZ-1-B-EL-FHYDBZ-1-B-EL-IYDBZ-1-B-EL-IIYDBZ-1-B-EL-III
Max brightness>8000cd/m2
View angle>75°
Display colorRed, green, yellow,amber
Brightness controlManual, automatic, timing, remote setting
Control modelSynchronous, asynchronous, wired network, wireless 4G, etc
interfaceRJ45, RS232, RS485, RS422
Blind spot ratio<0.0001, Discrete distribution
MTBF>10000h
Life span>100000h
Protective performanceShort circuit ,open circuit,overvoltage,overcurrent,overload,overheating,leakage, lightning protection, etc
Working tempreture/humidity-40℃-- +60℃, 10-80%, nodew
Storge tempreture/humidity-50℃-- +80℃, 10-85%, nodew
Wind resistance40m/s
Protectiion classIP56
Grounding resistanceWorking grounding resistance<4Ω, lighting protection grounding resistance<10Ω
Insulation resistance>100MΩ
Dilectric breakdown strengthAC1500V
Visual recognition distanceMax dynamic visual recognition distance>210m, max static visual recognition distance>250m
InstallatioinFrame type, cantilever type, Column type
Input voltageAC220V(1±15%) or AC380V(1±15%), 50±2Hz
Environmental monitoringTemperature,humidity,smoke, brightness, switching power status, box door status
